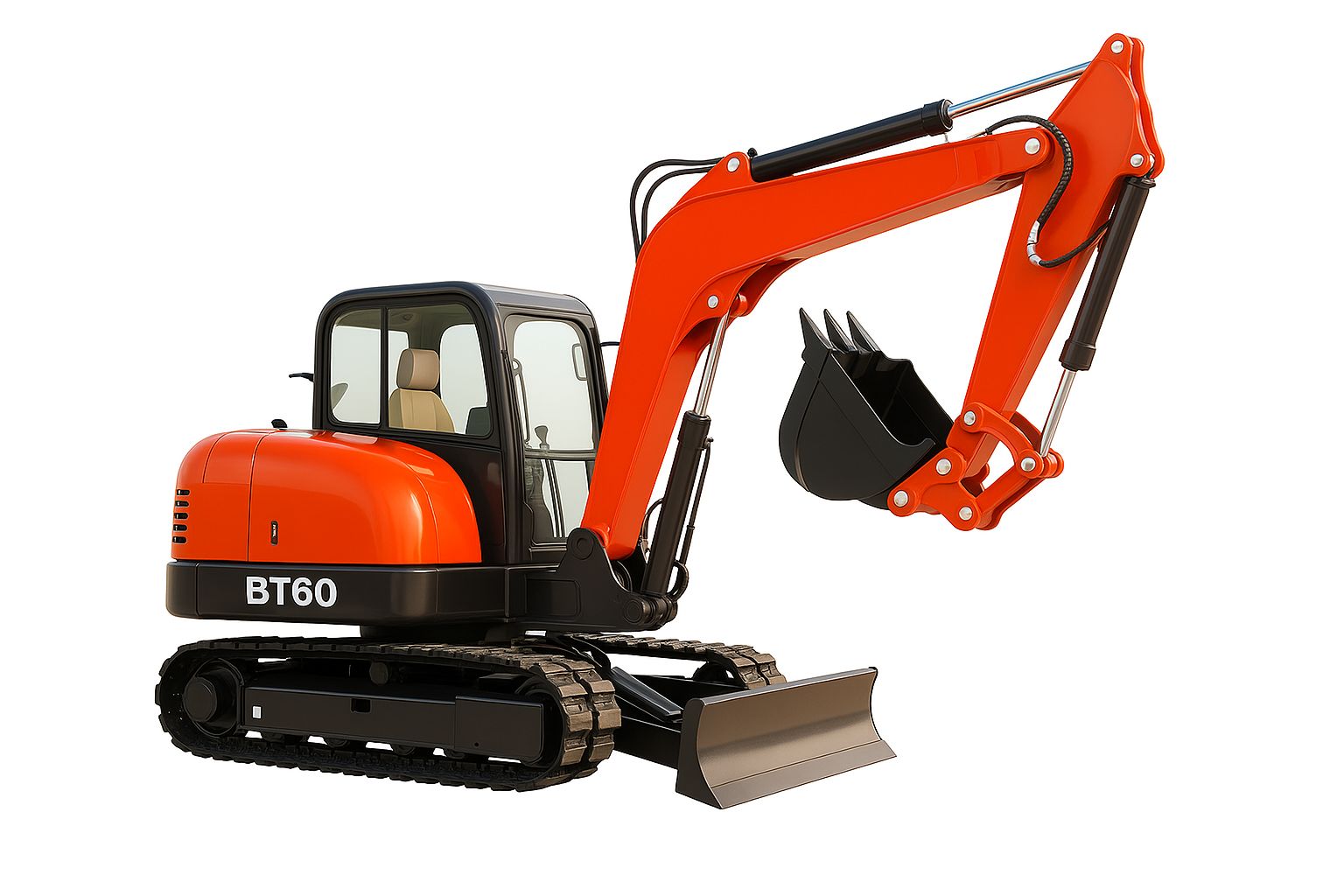

Model | BT60 |
Standard Bucket capacity | 0.21m³ |
Swing speed | 11rpm |
Maximum Grade ability | 35° |
Maximum Bucket digging force | 48KN |
Maximum Arm digging force | 35KN |
Hydraulic system pressure | 28Mpa |
Machine weight | 6100kg |
Fuel tank | 87L |
Hydraulic oil tank | 100L |
Engine |
Emission Standard | Tier 3/ Stage III |
Make /Model | Kubota Engine/V2607 |
Power /Rotation speed | 42.4kw(58HP)@2000rpm |
Number of cylinder | 4 |
Track System |
Maximum Travel speed | 2.4/4.3 km/h |
Width of track shoe | 400mm |
Number of track shoe per side | 40pcs |
Number of upper roller per side | 1 |
Number of bottom roller per side | 5 |
Working Range |
Maximum Digging height | 5499mm |
Maximum Dumping height | 3845mm |
Maximum Digging depth | 3808mm |
Maximum Vertical digging depth | 2983mm |
Maximum Digging radius | 6128mm |
Minimum swing radius | 2607mm |
Maximum Lifting height of blade | 376mm |
Maximum Cutting depth of blade | 474mm |
Machine Size |
Overall dimension (L*W*H) | 5940mm*1880mm*2570mm |
Height of cabin | 2600mm |
Track length on ground(Axle base) | 1990mm |
Track gauge | 1480mm |
Minimum Ground clearance | 353mm |
Swing radius at tail | 1689mm |
